YT European Style Top Running Electric Hoist For Double Beam Eot Crane

Product Categories
Henan Yuantai Crane Machinery Import&Export Co.,Ltd
Contact Now

YT European Style Top Running Electric Hoist For Double Beam Eot Crane

  • 1
  • 2

Place of Origin : Henan, China (Mainland)

Brand Name : Yuantai

Certification : ISO;CE;SGS

Model Number : ND

Usage : Construction Hoist

Power Source : Electric

Sling Type : Wire Rope

Maximum Lifting Weight : 0.25-80T

Maximum Lifting Height : 100m

Lift Speed : according customer's request

MOQ : 1

Price : Negotiation

Packaging Details : Fumigation wooden box

Delivery Time : 15days after we got deposit

Payment Terms : TT/LC/Others

Supply Ability : 10000 sets per year

Contact Now

Technical parameter of European wire rope hoist :



Type Single Girder Low Headroom
Capacity (t) 2000 3200 5000 8000
Lifting Height (m) 6 9 12 15 18 6 9 12 15 18 6 9 12 15 18 6 9 12 15 18
Lifting Speed (m/min) 5/0.8 5/0.8 5/0.8 5/0.8
Lifting Motor (kw) 3.2/0.45 3.2/0.45 6.1/1 9.5/1.5
Traveling Speed (m/min) 5/20 5/20 5/20 5/20
Traveling Motor (kw) 0.37 0.37 0.37 0.75
Wire Rope Breaking Force 2160N/mm^2
Safety factor  4.5:1
Insulation Grade F
Control Panel IP65
Working Grade
(FEM/ISO)		 Lifting 3M / M6 2M / M5 2M / M5 3M / M6
Traveling 2M /M5 2M /M5 2M /M5 2M /M5
Dimension
(mm)		 H 210 210 260 325
C 556 556 596 750
B 150-300 150-300 200-350 200-410

Type Single Girder Low Headroom
Capacity (t) 10000 12500 16000 20000
Lifting Height (m) 6 9 12 15 18 6 9 12 15 18 6 9 12 15 18 6 9 12 15 18
Lifting Speed (m/min) 5/0.8 4/0.6 4/0.6 4/0.6
Lifting Motor (kw) 9.5/1.5 12.5/2 16/2.6 16/2.6
Traveling Speed (m/min) 5/20 5/20 5/20 5/20
Traveling Motor (kw) 0.75 0.75 0.75*2 0.75*2
Wire Rope Breaking Force 2160N/mm^2
Safety factor  4.5:1
Insulation Grade F
Control Panel IP65
Working Grade
(FEM/ISO)		 Lifting 2M / M5 1Am / M4 2M / M5 1Am / M4
Traveling 2M / M5 2M / M5 2M / M5 2M / M5
Dimension
(mm)		 H 325 325 400 400
C 750 750 920 920
B 200-410 200-410 300-450 350-400

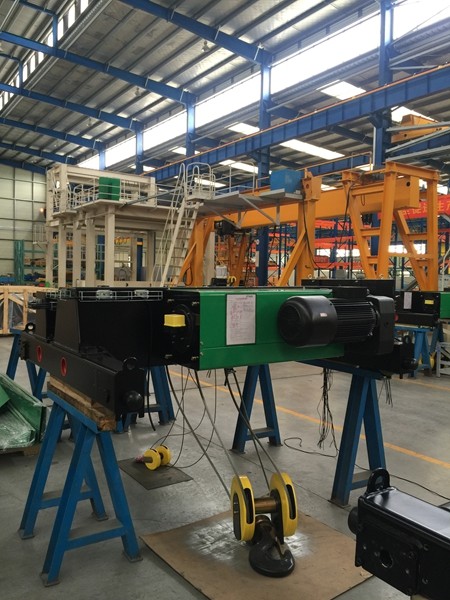

Yuantai European type single girder low headroom wire rope hoist pictures



YT European Style Top Running Electric Hoist For Double Beam Eot Crane

YT European Style Top Running Electric Hoist For Double Beam Eot Crane

YT European Style Top Running Electric Hoist For Double Beam Eot CraneYT European Style Top Running Electric Hoist For Double Beam Eot CraneYT European Style Top Running Electric Hoist For Double Beam Eot Crane
