Yuantai Widely used explosion proof wire rope electric hoist

Product Categories

Henan Yuantai Crane Machinery Import&Export Co.,Ltd

Contact Now

Name: Yuantai Widely used explosion proof wire rope electric hoist
Brand: YUANTAI
Price: 1 USD

Place of Origin : China

Brand Name : YUANTAI

Certification : CE, SGS, ISO

Model Number : BCD

Usage : Construction Hoist

Power Source : Electric

Sling Type : Wire Rope

Maximum Lifting Weight : 20t

Maximum Lifting Height : 6-30m(Max100m)

Lift Speed : 8m/min

MOQ : 1

Price : Negotiable

Packaging Details : Explosion-proof Electric Wire Rope Hoist:Wooden carton

Delivery Time : 15 days after receiving your payment

Payment Terms : TT/LC

Supply Ability : 4000 Sets per Year

Contact Now

Explosion proof engine hoist Brief Description:

1. Environmental conditions: elevation: below 1000m, relative humility: 85%(20±5°C)

2. Mainly applied to Class I, Class IIB and IIC. Temperature scale is class T1-T4 (explosion hazardous area).

3. Can be hanged on the I beam rail and do straight or curve operation.

4. Can be installed on the fixed support as a use of weight lifting.

5. Can be equipped with explosion-proof single-girder and double-girder.

Explosion proof engine hoist Features:

In General

Compact structure, light weight, safe and reliable

Good compatibility,high interchangeability components

High lifting capacity, easy maintenance

Easy operation, accurate and smooth lifting

Explosion-proof form is "Exd" .

Designed, produced, checked and accepted basing on rule of GB3836-2000

The Exmark are dIIBT4 or dIICT4.

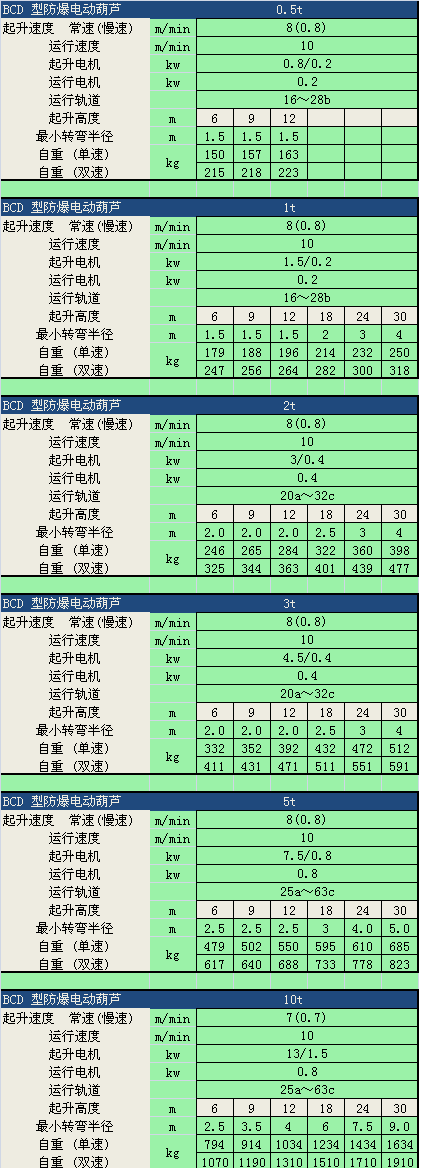

Temperature scale is Class T1-T4 mixture with explosive air (as table one and two).

Yuantai Widely used explosion proof wire rope electric hoist

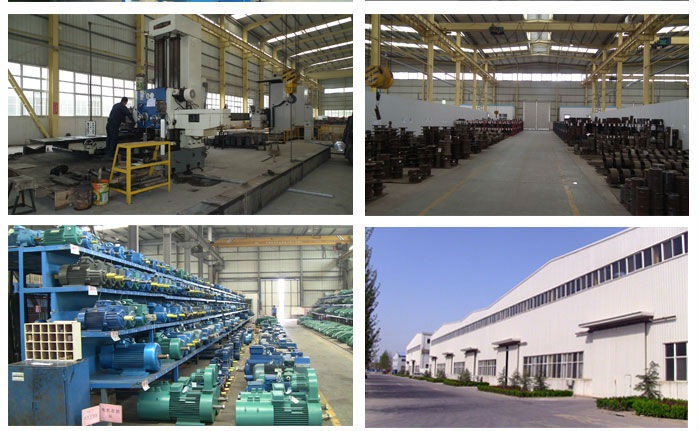

Factory show:

Yuantai Widely used explosion proof wire rope electric hoist Images
