YUANTAI certified LH model double girder overhead hoist crane

Product Categories
Henan Yuantai Crane Machinery Import&Export Co.,Ltd
Contact Now

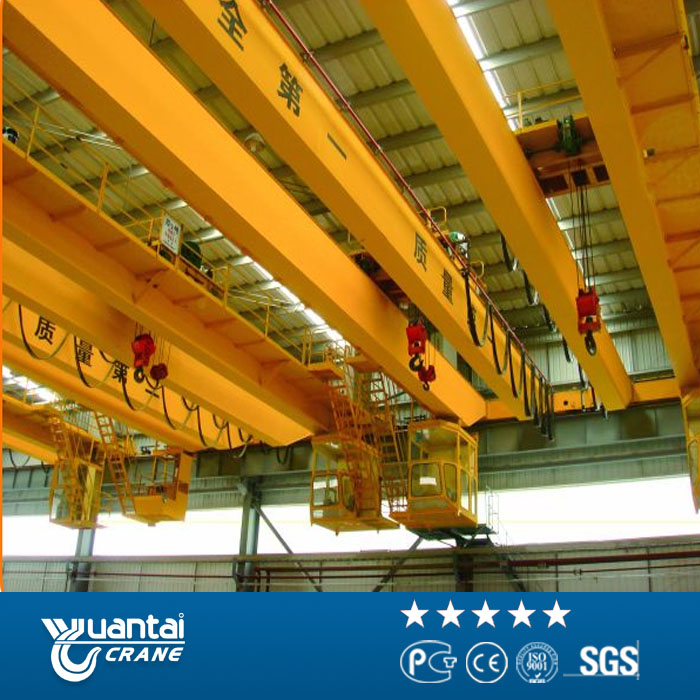

YUANTAI certified LH model double girder overhead hoist crane

  • 1
  • 2
  • 3

Place of Origin : Henan, China (Mainland)

Brand Name : yuantai

Certification : ISO, CE, SGS,etc.

Model Number : LH

Rated Lifting Moment : according to the specified parameters

Rated Loading Capacity : 20t

Max. Lifting Load : 20t

Max. Lifting Height : 24m

Span : 7.5-25.5m

Application : various

Feature : Bridge Crane

MOQ : 1

Price : US $ 1,000 - 10,000 / Set

Packaging Details : wooden box, standard packing for export

Delivery Time : within 30 days after prepayment

Payment Terms : TT/LC/Others

Contact Now

double girder overhead hoist crane Operation Method
1,Ground controler or cabin control
2,open cabin, close cabin.

3,Any door's open direction

4, carbon steel of Q235B or Q345B.
5,Main girder is bolted connection of 10.9 grade.



LH Type Double-girder Overhead Crane with Electric Hook       32t/10t
Span m 7.5 10.5 13.5 16.5 19.5 22.5 25.5

Lifting Speed(slow) m/min 3(0.3)(main hook),7(0.7)(aux hook)
Trolley speed m/min 20
Crane speed m/min 20(ground control); 45(room control)
Lifting Motor kw 18.5/2.2(main hook),13/1.5(aux hook)
Trolley Motor kw 2.2×2

Body weight(ground control) kg 12530 14660 16360 18870 21650 24260 27000
Body weight   (room control) kg 13430 15560 17260 19770 22550 25160 27960
Max wheel load KN 167 185 195 205 215 225 233
Recommended Rail   P43

Main dimension mm 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Wheel tread to hoist top H 1900
Wheel tread to main girder bottom H2 170 270 370 470 570 670 770
Wheel tread to hook centre H4 -700
End girder wheels' distance W 3600~4500
End girder lenth  B 5070~5960 5572~6222
Trolley track gauge K 1600~2500
Hook left limitation S1 1100
Hook right limitation S2 1600


 YUANTAI certified LH model double girder overhead hoist craneYUANTAI certified LH model double girder overhead hoist crane

Company information

YUANTAI certified LH model double girder overhead hoist crane

Yuantai Crane Machinery is professional logistics handling products exporter, with long history trading time having rich technical experience. We are located in Changyuan--- the crane's hometown, have passed the ISO9001 quality system certification, ISO14001environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification. our products are recommend by WTO. Yuantai always adhere to customers first,holding positive attitude to satisfy the customers' the demand.

YUANTAI certified LH model double girder overhead hoist crane



FAQ

1.Is your products cuztomized?

Thanks for your question, yes.because the working condition is different, all our products are cuztomized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.

2.What the information should i provide when i am inquiry?

Thanks for your question, the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much apprciated.

3.How many operation methods for my selction?

Thanks for question. The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.

4.The space of my workshop is limited, can the crane ok for me?

Thanks for your question. For low headroom workshop, we have special products. The details demension our engineer will be design for you.

5.Do your side can provide lifting tools?

Thanks for your question. Yes, we can provide any kind of lifting tools such as hook, electricmagnetic, grab...

NOTICE:

As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.

1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)
